Coagulation Kernel Tests

The Smoluchowski equation has analytical solutions for the constant, linear and product kernel and we test mcdust against the solutions for these kernels. To run the simulations use the following commands.

For the constant kernel,

make kerneltest SETUP_FILE=kernel_constant

For the linear kernel,

make kerneltest SETUP_FILE=kernel_linear

For the product kernel,

make kerneltest SETUP_FILE=kernel_product

To remove the compilation

make clean SETUP_FILE=kernel_linear

(replace kernel_linear with the respective kernel setup directory for other kernels.

import matplotlib.pyplot as plt
import os as os
import numpy as np
import h5py
from scipy.special import gammaln

def analytical_constant_kernel(t, m, a=1.):
        m0 = m[0]
        N0 = 1./m0
        N = N0/m0*4./(a*N0*t)**2 *np.exp((1.-m/m0)*2/(a*N0*t))
        return N*m**2

def analytical_linear_kernel(t,m,a=0.5):
    m0 = m[0]
    N0 = 1./m0**2
    g = np.exp(-a*t)
    k = (m / m0)

    # compute it with logarithm because large numbers give numerical problems
    logN = np.log(N0*g) - k*(1.-g) + (k-1.)*np.log(k*(1.-g)) - gammaln(k+1.)
    N = np.exp(logN)
    return N*m**2

def analytical_product_kernel(t, m):
        # compute it with logarithm because large numbers give numerical problems
        logN = (m-1)*np.log(m*t) - m*t - gammaln(m+1.) - np.log(m)
        N = np.exp(logN)
        return N*m**2

def read(type='linear',repeat = 5,nmbins=250):
    if type == 'constant':
        filedir = 'kernel_constant'
        ntime = 6
    elif type == 'product':
        filedir = 'kernel_product'
        ntime = 3
    else:
        filedir = 'kernel_linear'
        ntime = 5

    m2fm = np.zeros((nmbins,ntime,repeat))
    mgrid_wall = np.zeros((nmbins+1,ntime,repeat))
    timearr = np.loadtxt(os.path.join('../outputs/',filedir+str(1),'timesout.dat'))
    for i in range(repeat):

        for j in range(ntime):
            fname = os.path.join('../outputs/',filedir+str(i+1),'out-00'+str(j+1)+'.dat')
            data = np.loadtxt(fname)
            mgrid = data[:,0]
            m2fm[:,j,i] = data[:,1]
            fname = os.path.join('../outputs/',filedir+str(i+1),'mgri00'+str(j+1)+'.dat')
            mgrid_wall[:,j,i]= np.loadtxt(fname)
    result = {
        "m2fm" :  m2fm,
        "mgrid_cents" : mgrid,
        "mgrid_wall" : mgrid_wall,
        "tarr" : timearr
    }
    return result

def plot(result,type='linear'):
    start = 1
    colors = plt.rcParams['axes.prop_cycle'].by_key()['color']
    f,ax = plt.subplots()
    ax.set_xscale('log')
    ax.set_yscale('log')
    ax.set_ylim(10**-2,2)
    ax.set_ylabel('$m^2$f(m)')
    ax.set_xlabel('m')
    if (type == 'constant'):
        ax.set_xlim(1,10**6)
        ax.set_ylim(10**-2,2)
    elif (type == 'product'):
        ax.set_xlim(1,10**3)
        ax.set_ylim(10**-2,1)
    else:
        ax.set_xlim(1,10**10)
        ax.set_ylim(10**-2,4e-1)
    for it, time in enumerate(result["tarr"]):
        c = colors[it % len(colors)]
        ax.errorbar(result["mgrid_cents"][start:],
                     np.mean(result["m2fm"][start:, it,:], axis=1),
                     yerr=np.std(result["m2fm"][start:, it, :], axis=1),
                     fmt='none', marker='.', c=c, capsize=3, ls=None)
        ax.plot(result["mgrid_cents"][start:],
                     np.mean(result["m2fm"][start:, it,:], axis=1),
                     marker='.', c=c)
        if type == 'constant':
            ax.plot(result["mgrid_cents"],analytical_constant_kernel(time, result["mgrid_cents"],a=1),
                 c=c, ls='--')
        elif type == "product":
            ax.plot(result["mgrid_cents"],analytical_product_kernel(time, result["mgrid_cents"]),
                 c=c, ls='--')
        else:
            ax.plot(result["mgrid_cents"],analytical_linear_kernel(time, result["mgrid_cents"],a=0.5),
                 c=c, ls='--')

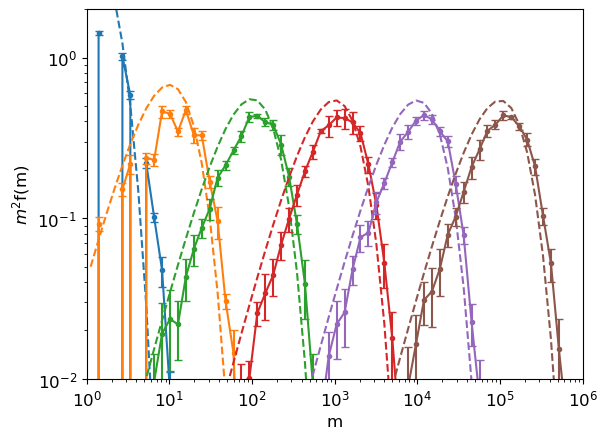

Constant Kernel

\[K (m,m')= 1.\]

sim = read(type='constant')
plot(sim,type='constant')

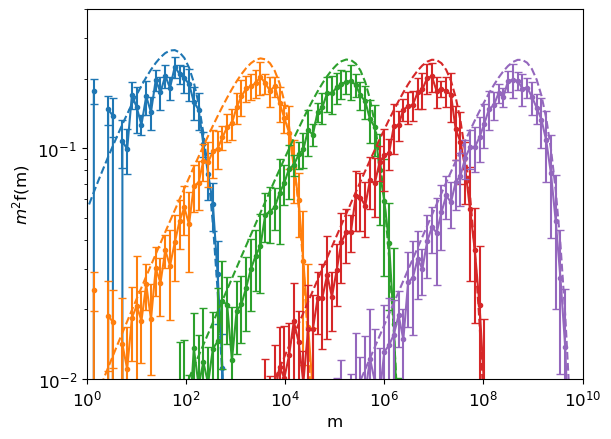

Linear kernel

\[K(m,m') = 0.5(m_1 + m_2)\]

sim = read(type='linear',repeat=10)
plot(sim,type='linear')

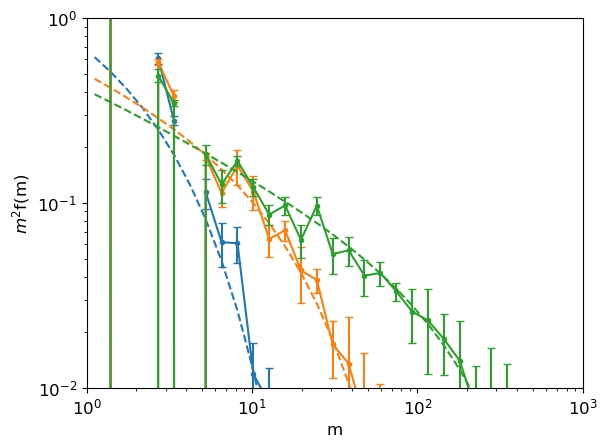

Product Kernel

\[K(m,m') = m_1 m_2\]

sim = read(type='product')
plot(sim,type='product')
